TPCH3 Modular Contactor for Electrical Load Control
Compact and dependable electrical modular contactor for switching lighting, heating, motors, and other loads in residential, commercial, and industrial power systems.
The TPCH3 modular contactor is a dependable solution for electrical load switching in low-voltage power distribution systems. It is widely used for controlling lighting, heating, ventilation, motors, and other electrical loads through remote switching or automatic control. Designed for installation in distribution boards and control panels, it offers compact size, reliable performance, and efficient operation for residential, commercial, and industrial applications.
Products Categories
Get A Free Quote
General
- TPCH3 series AC contactor is designed for remote switching and control in AC 50/60Hz systems, with rated voltage up to 400V and rated current up to 100A.
- The main contactor is suitable for AC-1 and AC-7a loads such as resistive heating, household appliances, and other light/low-inductive loads, and can also be used for controlling small motors.
- This contactor is not intended to interrupt short-circuit currents, so an appropriate short-circuit protective device must be installed in the circuit.
Technical data
Use category
| Use category | Typical use |
| AC-7a | Household appliances and other low-inductive loads with similar use |
| AC-7b | Household motor load |
Basic parameters of a contactor
| Parameter | Specification | |||||||
| 16 | 20 | 25 | 40 | 63 | 100 | |||
| Rated Current In(A) | AC-7a | 16 | 20 | 25 | 40 | 63 | 100 | |
| AC-7b | 6 | 7 | 8.5 | 15 | 20 | 30 | ||
| Conventional Free Air Thermal Current Ith(A) | 25 | 25 | 25 | 63 | 63 | 100 | ||
| Rated Insulation Voltage Ui(V) | 500 | |||||||
| Rated Voltage Ue(V) | 250V(2P) 400V(4P) | |||||||
| Ambient Temperature | −5℃~40℃ | |||||||
| Making and Breaking Capacity(AC-7a) | 1. 5Ie | |||||||
| Main Contacts | 2P | 1NO1NC、2NO、2NC | ||||||
| 4P | 2NO2NC、3NO1NC、4NO、4NC | |||||||
| Controlled power | AC-7a | 230V | 3.5 | 4.5 | 5.5 | 9 | 14 | 22 |
| 400V | 6.5 | 8 | 10 | 16 | 25 | 38 | ||
| AC-7b | 230V | 1.4 | 1.6 | 2 | 3.5 | 4.5 | 6.5 | |
| 400V | 2.4 | 2.8 | 3.4 | 6 | 8 | 11 | ||
| Electrical durability(times) | 10×10⁴ | |||||||
| Mechanical durability(times) | 100×10⁴ | |||||||
| Operation frequency /1h | 100 | |||||||
| Coil Voltage Us(V) | AC 230V 50/60Hz | |||||||
| Wiring Ability (mm²) | Control circuit | Rigid wire | 1.5~2.5 mm² 2×1.5mm² | |||||
| Flexible wire | 1.5~2.5 mm² 2×2.5mm² | |||||||
| Main circuit | Rigid wire | 1.5~6mm² | 6~25mm² | |||||
| Flexible wire | 1~4mm² | 6~16mm² | ||||||
| Fastening torque (N•m) | Main circuit terminal | 0.8 | 3.5 | |||||
| Control circuit terminal | 0.8 | |||||||
Dimension Drawing of TPCH3 Modular Contactor

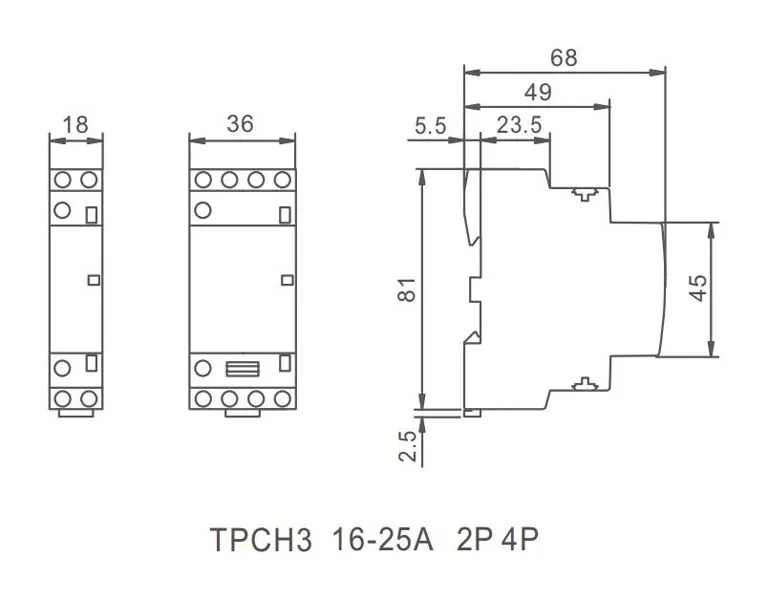

- TPCH3 Modular Contactor 16-25A 2P 4P
- TPCH3 Modular Contactor 40-63A 2P 4P

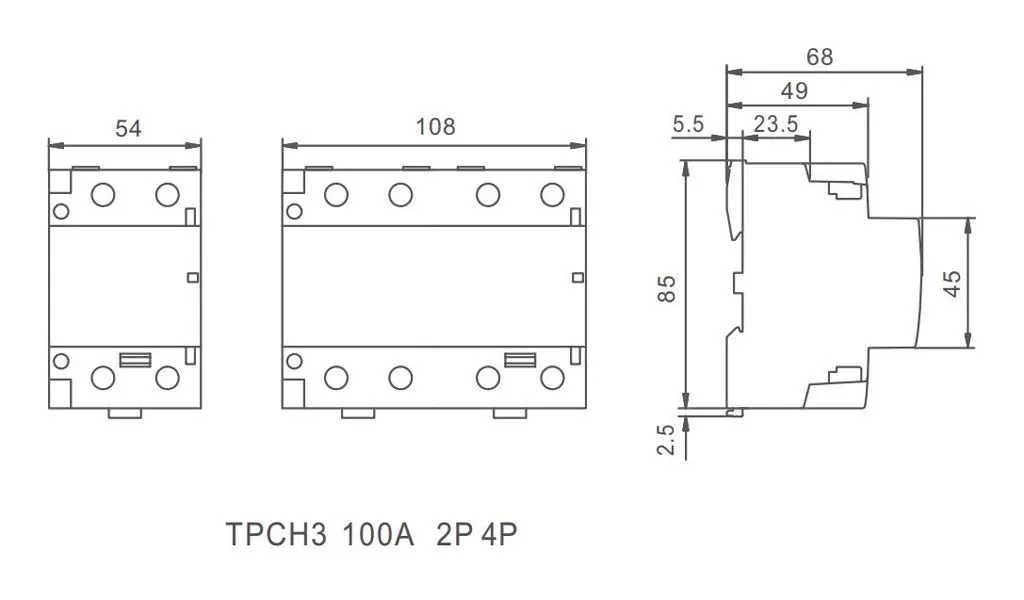

- TPCH3 Modular Contactor 100A 2P 4P

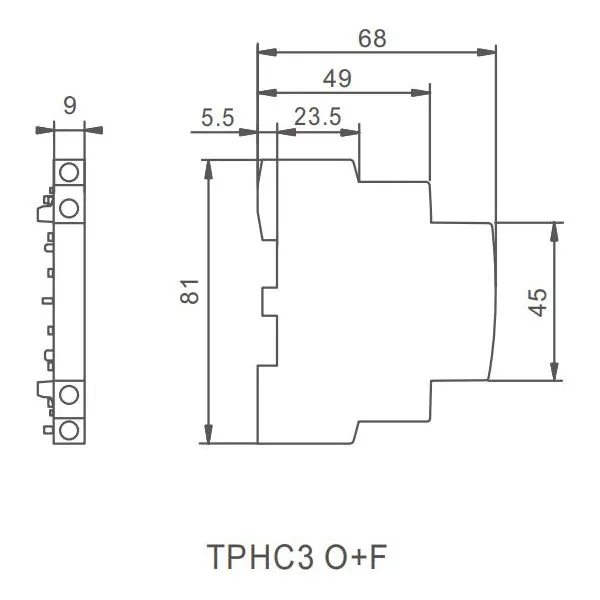

- TPHC3 Modular Contactor Accessories(O+F)
