TPU7-40 DC Surge Protective Device (DC SPD) — DC 500V–1500V, Type II
Class II DC SPD, In 20kA / Imax 40kA, IEC 61643-31 -- built for distributors and wholesale PV component sourcing.
TPU7-40 Type II DC surge protective device, DC 500V–1500V, In 20kA / Imax 40kA, IEC 61643-31 — from a China DC SPD manufacturer.
Key Features
- Type II (Class II) protection against transient overvoltage from lightning and switching surges on the PV DC side.
- Wide voltage coverage: DC 500V / 600V / 1000V / 1500V for residential, commercial and utility-scale PV.
- High discharge capacity: In 20kA, Imax 40kA (8/20µs).
- Pluggable module design with a status indicator window for fast inspection and replacement.
- Sealed structure, fast response, stable performance, compact 35mm DIN-rail format.

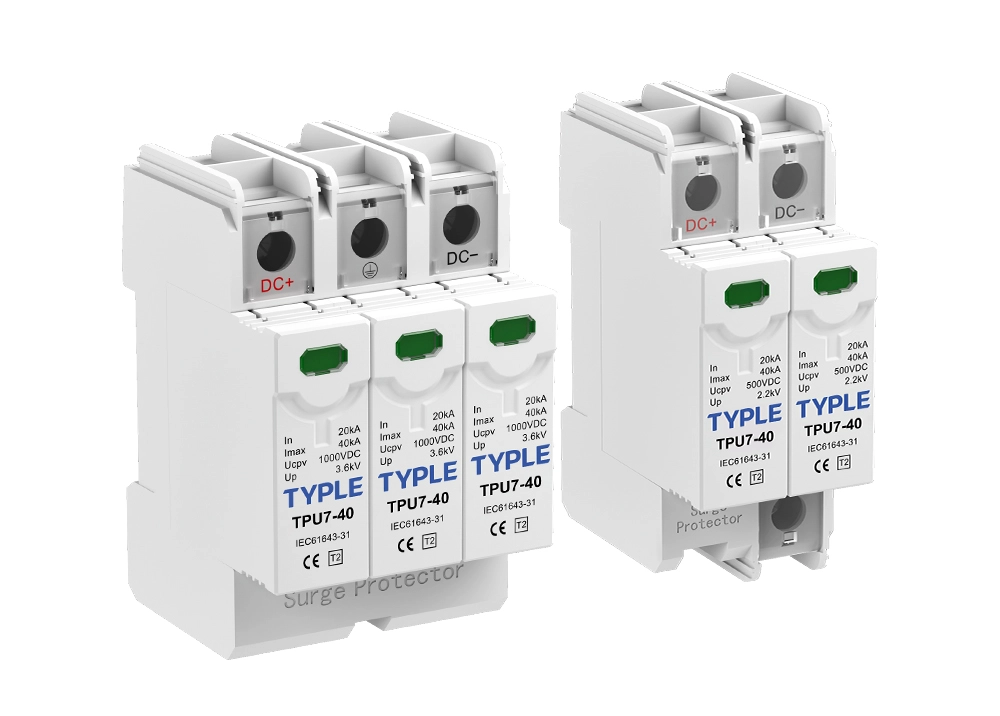

- 2P and 3P versions to suit different grounding and system configurations.
-
High-quality flame-retardant casing:Made from UL94V-0 rated flame-retardant material for enhanced fire safety and reliable protection.
TPU7-40 Surge Protector Manufacturer
TYPLE is the manufacturer of the TPU7-40, producing it in-house at our facility in Wenzhou, Zhejiang, China. Buying direct from the factory ensures stable pricing, consistent quality control and the flexibility to customise. For distributors, wholesalers and EPC contractors, this product forms part of a comprehensive PV and electrical portfolio — including DC SPDs, DC MCBs, DC MCCBs, DC fuses, DC isolators, PV connectors and AC-side components — enabling you to consolidate sourcing, reduce supplier complexity and shorten project lead times.
-
OEM & private label:
customizable logo and printed parameters on the housing.
-
Standards-aligned:
engineered to align with IEC 61643-31; component certificates available through TYPLE’s qualified supply-chain partners.
-
One-stop sourcing:
pair the DC SPD with the rest of your PV DC and AC bill of materials in a single order.
-
Reliable supply:
pre-sales selection support, custom solutions, and dependable delivery for repeat and project volumes.
DC SPD DC500V~DC1500V Description
| Technical data | |||||||
| Product Name | DC Surge protection device(SPD) | ||||||
| Model | TPU7-40 | ||||||
| Pole | 1P | 2P | 3P | ||||
| Rated Working Voltage Ue (V) | DC1000 | DC500 | DC600V | DC800 | DC1000 | DC1000 | DC1500 |
| Up(kV) | 3.6 | 2.2 | 2.2 | 2.5 | 3.6 | 3.6 | 5.3 |
| Size(mm) | 90*18*65 | 90*36*65 | 90*54*65 | ||||
| SPD Type | Type 2/Class ll | ||||||
| Technology | MOV(Metal Oxide Varistors) | ||||||
| Protection mode(s) | DC PE.DC~ | ||||||
| In (8/20)us | 20kA | ||||||
| Imax (8/20)us | 40kA | ||||||
| Response time tA | ≤25ns | ||||||
| Admissible short-circuit current Isccr | 25kA | ||||||
| Max.backup fuse | 63A gL/Gg | ||||||
| lightning Protection | Yes | ||||||
| Levels of Protection | IP20/IK10 | ||||||
| Flame Retardant | UL94V-0 | ||||||
| Component Standards | IEC 61643-31 | ||||||
| Housing Material | PA | ||||||
| Operating Temperature | -40℃ ~ 80℃ | ||||||
| Humidity | ≤95% | ||||||
| Altitude | 2000m | ||||||
| Installation | 35mm DIN Rail | ||||||
| Warranty | 18 months | ||||||
DC SPD Applications
The TPU7-40PV protects DC-side equipment in:
- Residential rooftop PV systems
- Commercial & industrial (C&I) PV systems
- Utility-scale / ground-mount PV plants
- DC distribution boxes and PV combiner boxes
How to Select the Right TPU7-40 SPD Version
Two choices determine the right variant: system voltage and pole configuration.
- Voltage: match the SPD rating to your system’s maximum DC voltage. For modern 1500V PV strings choose the 1500V version; for 1000V systems choose 1000V, and so on. Always select a rating at or above the system’s maximum operating voltage.
- Poles (2P vs 3P): the 2P version protects DC+ and DC− with the earth connection below. The 3P version adds a dedicated central grounding pole for a more complete protection arrangement; it is the common choice for higher-voltage and grounded configurations.
- Placement: as a Type II device, install it at the DC distribution box or PV combiner box, close to the equipment being protected.
If you are sourcing for multiple projects, our pre-sales team can recommend the correct version per project based on system voltage, layout and installation conditions.
TPU7-40 SPD Features

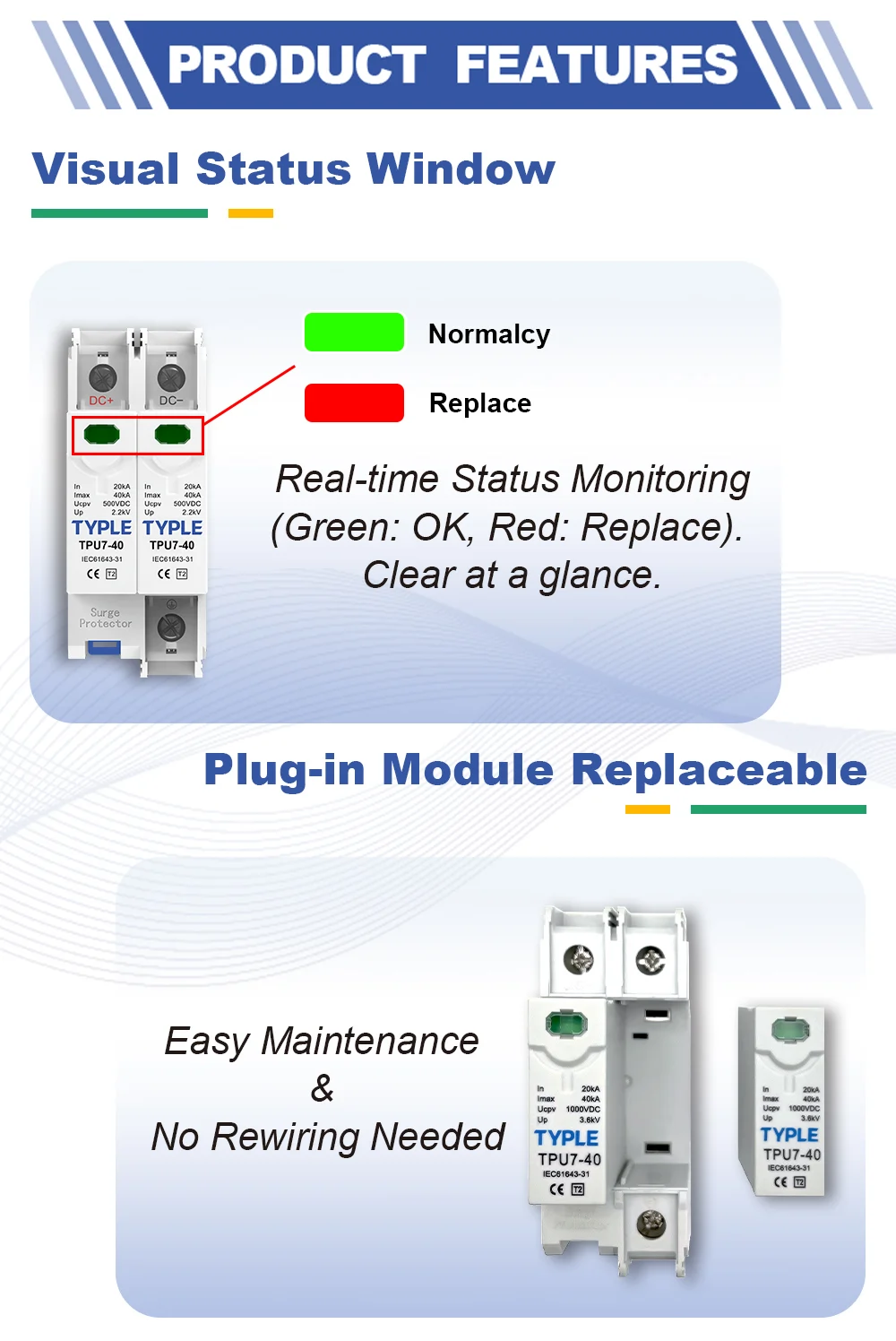

- Visual Status Window :Real-time Status Monitoring (Green: OK, Red: Replace). Clear at a glance.
- Plug-in Module Replaceable : Easy Maintenance & No Rewiring Needed
- High-grade Flame Retardant Material :UL94-V0 Flame Retardant Housing. Prevents fire hazards in extreme conditions.
- Fast Response Time:High-level lightning surge chip module

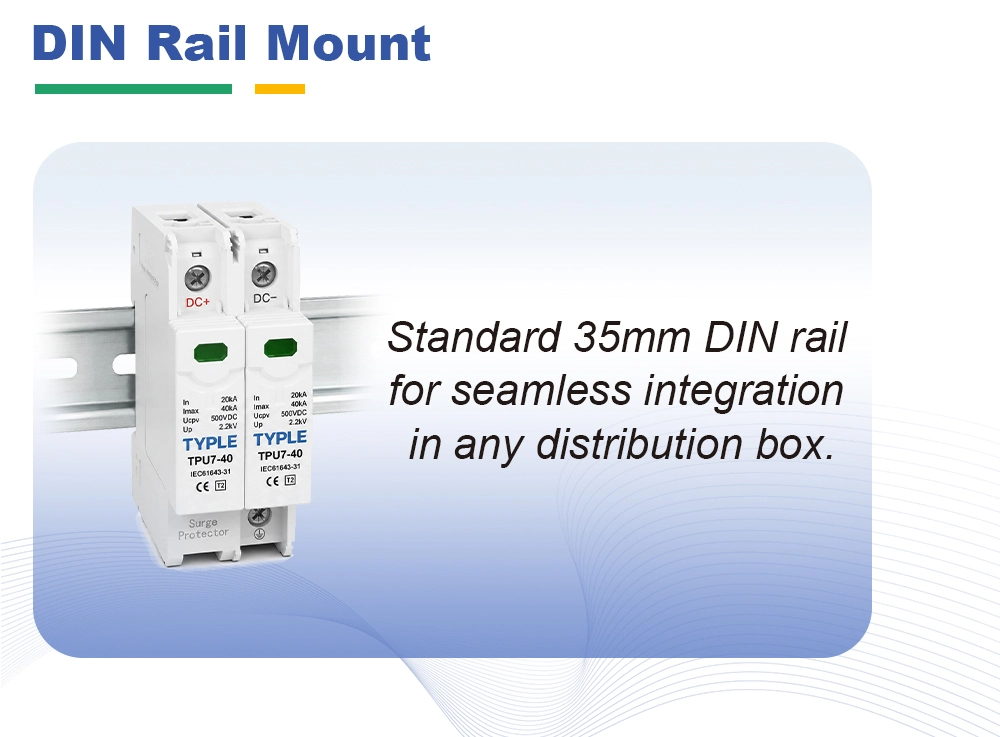

- DIN Rail Mount :Standard 35mm DIN rail for seamless integration in any distribution box.

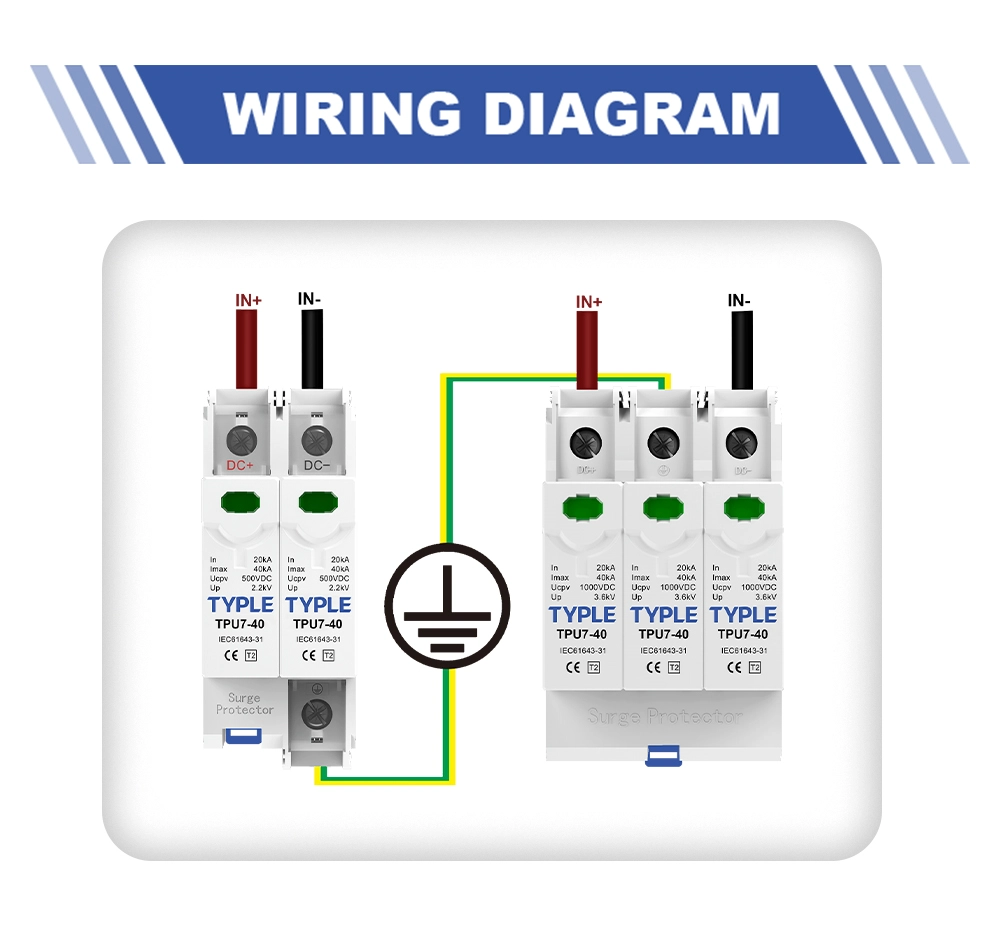

TPU7-40 DC SPD Wiring Diagram

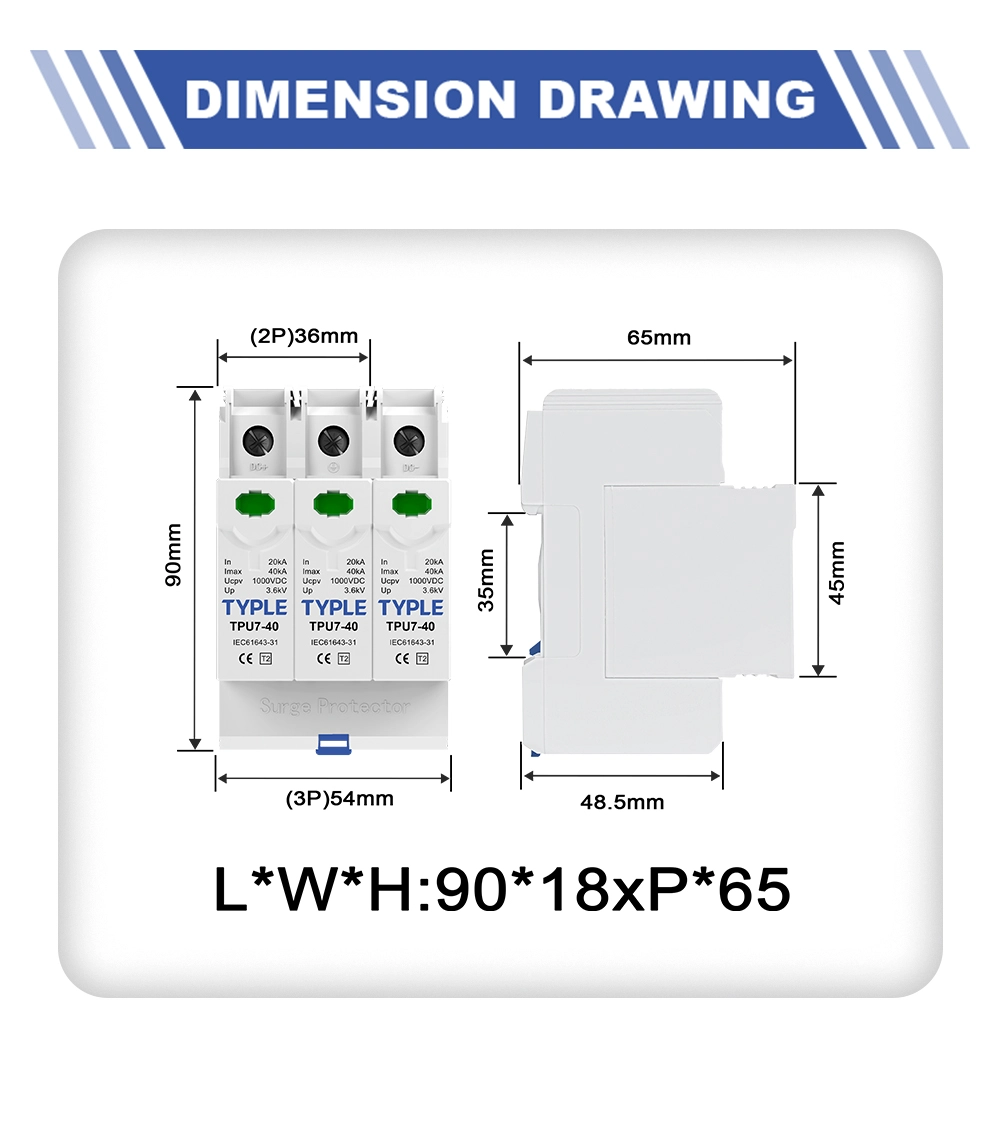

TPU7-40 DC SPD Dimensions
FAQs
TYPLE(Wenzhou Typle New Energy Technology Co., Ltd.) is the manufacturer of the TPU7-40. The product is produced in-house in Wenzhou, Zhejiang, China, so buyers order direct from the factory rather than through a middleman.
Yes. The TPU7-40 supports customizable logo and printed parameters for OEM, ODM and private-label orders, which is well suited to distributors and brand owners.
The TPU7-40 is engineered to align with IEC 61643-31, the standard covering DC-side surge protection for PV systems. Component test certificates from our qualified supply-chain partners and the product datasheet are available on request.
Yes. It is available in DC 500V, 600V, 1000V and 1500V versions, covering residential, commercial and utility-scale PV systems up to 1500V DC.
It is a Type II (Class II) DC SPD, designed to limit transient overvoltage on the PV DC side. It is typically installed at the DC distribution box or combiner box.
Yes. Alongside the TPU7-40, TYPLE supplies a full range of PV DC and AC-side components, so distributors and EPC contractors can consolidate their bill of materials with one supplier, with pre-sales selection support and dependable delivery.Request a quote or datasheet: contact [email protected].
