TPB1-63 AC Miniature Circuit Breaker(MCB) for Load Safety
Breaking capacity(TPB1-63:3kA;TPB1-63H:4.5kA;TPB3-63:6kA;TPB3-63H:10kA)
TPB1-63 Miniature Circuit Breaker (MCB) is designed for AC 50/60Hz electrical circuits with a rated voltage up to 400V and a rated current up to 63A. It provides reliable overload and short-circuit protection, and can also be used for infrequent circuit switching under normal Operating conditions.
It is widely suitable for residential distribution boards, commercial premises, industrial control panels, and high-rise building electrical systems.
Standard: IEC 60898-1
Products Categories
Get A Free Quote
Type designation
TPB1-63(H) 1P C 63A
| TP | B1 | 63 | H | 1P | C | 63A |
|---|---|---|---|---|---|---|
| Company code | Series code | Frame | Breaking capacity | Poles | Curve | Current(In) |
| TP | B1 | 63 | No: 3kA H: 4.5kA |
1P 2P 3P 4P |
B C D |
1A~63A |
Technical data
| Type | Parameter | Unit | Specification |
| – | Standard | – | IEC/EN 60898-1 |
| Electrical features | Rated current In | A | 1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 |
| Poles | P | 1,2,3,4 | |
| Rated voltage Ue | V | 230/400 | |
| Insulation voltage Ui | V | 500 | |
| Rated frequency | Hz | 50/60 | |
| Rated breaking capacity | A | 3000, 4500 | |
| Rated impulse withstand voltage(1.2/50)Uimp | V | 4000 | |
| Dielectric test voltage at ind. Freq. for 1min | kV | 2 | |
| Pollution degree | – | 2 | |
| Thermo-magnetic release characteristic | – | B,C,D | |
| Mechanical features | Electrical life | t | 6000 |
| Mechanical life | t | 20000 | |
| Protection degree | – | IP20 | |
| Reference temperature for setting of thermal element | °C | 30 | |
| Ambient temperature (with daily averages≤35°C) | °C | -5~+40 | |
| Storage temperature | °C | -25~+70 | |
| Installation | Terminal connection type | – | Cable/Pin-type busbar |
| Terminal size top/ bottom for cable | mm² | 25 | |
| AWG | 18-3 | ||
| Terminal size top/ bottom for busbar | mm² | 25 | |
| AWG | 18-3 | ||
| Tightening torque | N*m | 2 | |
| In-lbs | 18 | ||
| Mounting | – | On DIN rail EN 60715(35mm)by means of fast clip device | |
| Connection | – | From top or bottom |
Selection
- Curve Type
| Curve Type | Test current | Tripping time | Expected result |
| B,C,D | 1.13In | t≤1h(In≤63A) | Not tripping |
| 1.13In | t≤2h(In>63A) | ||
| B,C,D | 1.45In | t≤1h(In≤63A) | Tripping |
| 1.45In | t<2h(In>63A) | ||
| B,C,D | 2.25In | 1s<t<60s(In≤32A) | Tripping |
| 2.25In | 1s<t<120s(In>32A) |
| Curve Type | Test current | Tripping time | Expected result |
| B | 3In | t≤0.1s | Not tripping |
| C | 5In | t≤0.1s | |
| D | 10In | t≤0.1s | |
| B | 5In | t<0.1s | Tripping |
| C | 10In | t<0.1s | |
| D | 20In | t<0.1s |

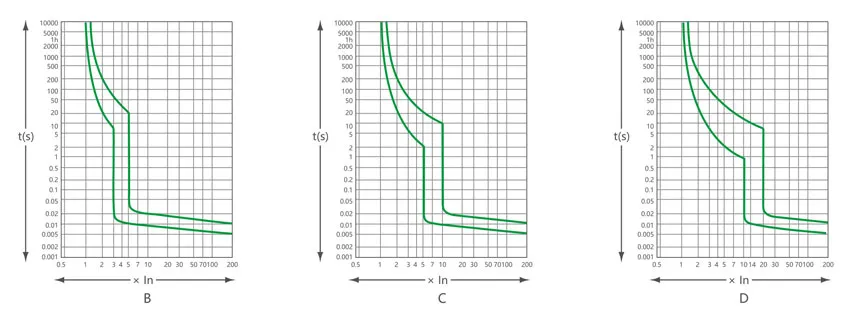

- Curve
- Temperature drop correction table
Miniature Circuit Breaker current performance is temperature-dependent. Ambient temperature means the temperature inside the enclosure(distribution box/switch cabinet) at the installation location. Refer to the rows in the table for the corresponding reference temperatures.Product standard: GB/T 10963.1, IEC 60898-1(household standard)
| Rated current | temperature | ||||||||||
| -5 °C | 0 °C | 5 °C | 10 °C | 15°C | 20°C | 25°C | 30°C | 35°C | 40°C | 45°C | |
| 1A | 1.16 | 1.14 | 1.11 | 1.09 | 1.07 | 1.05 | 1.02 | 1.00 | 0.98 | 0.95 | 0.92 |
| 2A | 2.30 | 2.26 | 2.22 | 2.18 | 2.13 | 2.08 | 2.04 | 2.00 | 1.96 | 1.92 | 1.88 |
| 4A | 4.72 | 4.63 | 4.53 | 4.43 | 4.32 | 4.22 | 4.11 | 4.00 | 3.89 | 3.77 | 3.65 |
| 6A | 6.97 | 6.84 | 6.71 | 6.57 | 6.43 | 6.29 | 6.15 | 6.00 | 5.85 | 5.69 | 5.53 |
| 10A | 12.25 | 11.95 | 11.65 | 11.34 | 11.02 | 10.69 | 10.35 | 10.00 | 9.64 | 9.26 | 8.86 |
| 16A | 18.72 | 18.35 | 17.98 | 17.60 | 17.22 | 16.82 | 16.42 | 16.00 | 15.57 | 15.13 | 14.68 |
| 20A | 23.24 | 22.80 | 22.36 | 21.91 | 21.45 | 20.98 | 20.49 | 20.00 | 19.49 | 18.97 | 18.44 |
| 25A | 29.12 | 28.57 | 28.01 | 27.43 | 26.85 | 26.24 | 25.63 | 25.00 | 24.35 | 23.69 | 23.01 |
| 32A | 37.18 | 36.49 | 35.78 | 35.05 | 34.32 | 33.56 | 32.79 | 32.00 | 31.19 | 30.36 | 29.50 |
| 40A | 46.66 | 45.77 | 44.86 | 43.93 | 42.98 | 42.01 | 41.02 | 40.00 | 38.96 | 37.88 | 36.78 |
| 50A | 58.57 | 57.43 | 56.26 | 55.06 | 53.84 | 52.59 | 51.31 | 50.00 | 48.65 | 47.27 | 45.84 |
| 63A | 74.73 | 73.17 | 71.57 | 69.94 | 68.27 | 66.56 | 64.81 | 63.00 | 61.14 | 59.22 | 57.24 |

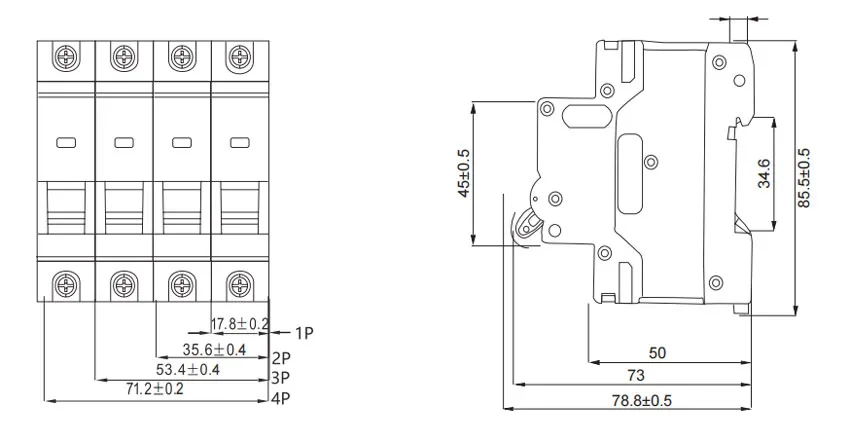

Overall and mounting dimensions(mm)
