TPM7 Series DC Molded Case Circuit Breaker (63–250A)
TPM7 Series DC Molded Case Circuit Breaker (63–250A)
A TPM7 DC molded case circuit breaker is rated 63–250 A and up to DC 1000 V, with an ultimate breaking capacity (Icu) of 20 kA, a service breaking capacity (Ics) of 15 kA and a thermal-magnetic trip unit. Each pole withstands 250 V DC, so the pole count — 1P, 2P, 3P or 4P — sets the maximum system voltage the breaker can protect.
Two frame sizes cover the 63–250 A band: the TPM7-125 frame (63 / 80 / 100 / 125 A) and the TPM7-250 frame (160 / 180 / 200 / 225 / 250 A). Both frames are available in 1P, 2P, 3P and 4P configurations, so 2P covers DC 500 V, 3P covers DC 750 V and 4P covers DC 1000 V.
This makes the TPM7 a direct fit for string-level and small commercial arrays, where it is normally installed on the output side of a PV combiner box, or as the DC feeder breaker of a distribution board.
The breaker uses a thermal-magnetic trip unit, a bakelite thermoset housing and copper conductors, with a rated insulation voltage of 1600 V and an impulse withstand voltage of 8 kV. Rated ultimate breaking capacity (Icu) is 20 kA and rated service breaking capacity (Ics) is 15 kA. Screw-fixed and plug-in versions are both available, and alarm contacts, shunt releases and undervoltage releases can be fitted at the factory.
For systems above DC 1000 V, or for currents above 250 A, see the TPM7n 1500V DC MCCB series.
- 63–250 A across two frame sizes — TPM7-125 and TPM7-250
- Up to DC 1000 V — 250 V per pole, 1P / 2P / 3P / 4P available
- Icu 20 kA / Ics 15 kA, thermal-magnetic trip unit
- Screw-fixed or plug-in mounting, with optional alarm contact, shunt release and undervoltage release
TPM7 Technical Specifications
The TPM7 covers 63–250 A across two frame sizes: the TPM7-125 (63–125 A) and the TPM7-250 (160–250 A). Both frames share
a rated insulation voltage of 1600 V, an impulse withstand voltage of 8 kV, 20,000 mechanical operations and 3,000
electrical operations, and are engineered to align with IEC 60947-2.
Frame sizes and rated currents
| Frame | Rated current In (A) | Poles | Max. Ue (DC) by pole count |
|---|---|---|---|
| TPM7-125 | 63 / 80 / 100 / 125 | 1P, 2P, 3P, 4P | 250 V (1P) · 500 V (2P) · 750 V (3P) · 1000 V (4P) |
| TPM7-250 | 160 / 180 / 200 / 225 / 250 | 1P, 2P, 3P, 4P | 250 V (1P) · 500 V (2P) · 750 V (3P) · 1000 V (4P) |
How many poles does a DC MCCB need?
Common electrical data
| Parameter | Value |
|---|---|
| Rated operational voltage Ue (DC) | 250 / 500 / 750 / 1000 V (by pole count) |
| Rated operational voltage Ue (AC) | 12–690 V |
| Rated insulation voltage Ui | 1600 V |
| Rated impulse withstand voltage Uimp | 8 kV |
| Rated frequency | 50 / 60 Hz |
| Rated ultimate breaking capacity Icu | 20 kA |
| Rated service breaking capacity Ics | 15 kA |
| Trip unit | Thermal-magnetic |
| Mechanical life | 20,000 operations |
| Electrical life | 3,000 operations |
| Housing material | Bakelite (thermoset) |
| Conductor material | Copper |
| Operating temperature | −35 °C to +70 °C |
| Relative humidity | ≤ 95 % |
| Altitude | ≤ 2000 m |
| Installation | Screw-fixed or plug-in |
| Accessories | Alarm contact, shunt release, undervoltage release |
| Reference Standards | IEC 60947-2 |
Mounting note: the fixed version is screw-fixed to a base plate. TPM7 frames are not DIN-rail mounted.

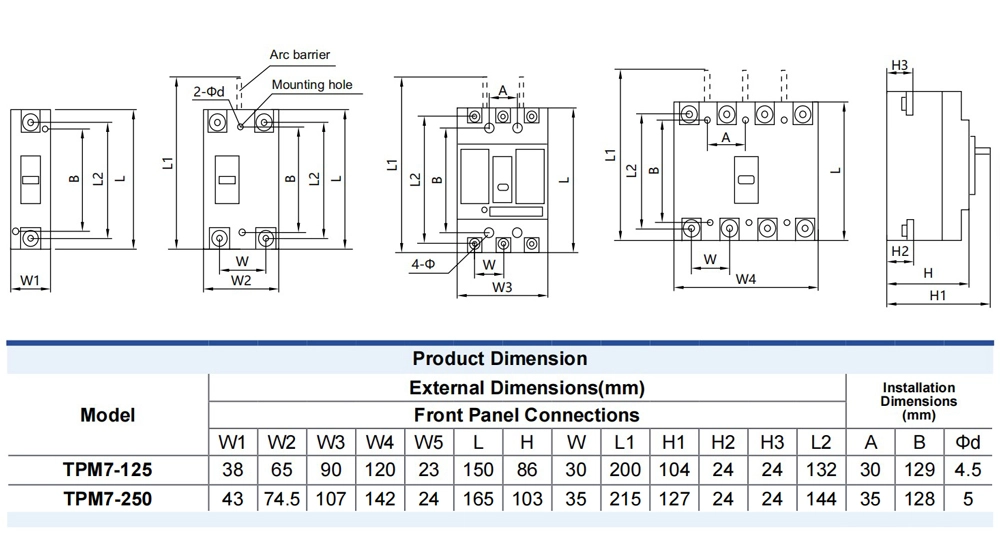

Dimensions (L × W × H, mm)
| Frame | 1P | 2P | 3P | 4P |
|---|---|---|---|---|
| TPM7-125 | 150 × 38 × 88 | 150 × 65 × 88 | 150 × 91 × 88 | 150 × 121 × 88 |
| TPM7-250 | 165 × 43 × 108 | 165 × 75 × 108 | 165 × 106 × 108 | 165 × 141 × 108 |
How to Select the Right Pole Configuration
A TPM7 pole withstands 250 V DC, so a DC 500 V array needs a 2-pole breaker, a DC 750 V array needs 3 poles, and a
DC 1000 V array needs 4 poles.
The frame size is set by the rated current; the pole count is set by the system voltage, not by the current.
| System DC voltage | 63–125 A | 160–250 A |
|---|---|---|
| DC 500 V | TPM7-125, 2P | TPM7-250, 2P |
| DC 750 V | TPM7-125, 3P | TPM7-250, 3P |
| DC 1000 V | TPM7-125, 4P | TPM7-250, 4P |
| DC 1500 V | not applicable — use TPM7n-320, 3P | not applicable — use TPM7n-320, 3P |
Two practical notes:
- At DC 1000 V the TPM7 needs four poles.
If panel width inside the combiner box or DC cabinet is tight, a TPM7n-320 in 2P reaches the same DC 1000 V with two poles instead of four. - 1P (DC 250 V)
is listed for completeness in the specification table. It is rarely used in photovoltaic circuits and is not recommended for array protection.
Get Your Quote Within 24 Hours
Send us your product model or project requirements — our engineering team will reply with a tailored quotation and confirmed lead time within 24 hours.
Applications
The TPM7 is used for DC circuit protection between 63 A and 250 A at system voltages up to DC 1000 V — most often at the output of a PV combiner box, on the DC feeder to an inverter, and in DC distribution boards.
- Residential and small commercial rooftop PV
— DC feeder protection between the array and the inverter, typically 63–160 A. - PV combiner box output protection
— installed on the outgoing side of a DC1000V PV combiner box to protect and isolate the combined array current. - DC distribution boards
— main or sub-feeder breaker in DC panels rated up to 1000 V. - Off-grid and hybrid systems
— DC-side protection where charge controllers and inverters share a common bus. - DC side of small energy storage systems
— circuit protection between the battery bank and the power conversion system.
DC MCCB OEM & Customization
TYPLE builds TPM7 DC molded case circuit breakers to order, with rated current, pole count, mounting type and accessory fitment selected per project. TYPLE is a Wenzhou-based manufacturer of PV combiner boxes and DC protection components for solar and energy storage systems.
OEM and ODM options cover selection of rated current within each frame, 1P–4P pole configuration, accessory fitment (alarm contact, shunt release, undervoltage release), plug-in or screw-fixed mounting, and nameplate or packaging branding. Backed by the Liushi low-voltage electrical supply hub, we deliver customized solutions with short lead times, confirmed in writing at quotation.
TPM7 breakers are engineered to align with IEC 60947-2. Certificates for the breaker are held by TYPLE’s qualified supply-chain partners and can be provided on request with written attribution.
FAQs
Up to DC 1000 V. Each pole withstands 250 V DC, so the maximum operational voltage depends on the pole count: 250 V for 1P, 500 V for 2P, 750 V for 3P and 1000 V for 4P.
Four poles. A 4P TPM7-125 or TPM7-250 covers DC 1000 V. If you need to save width, a 2P TPM7n-320 DC MCCB is rated for DC 1000 V with only two poles.
Icu (20 kA) is the ultimate short-circuit breaking capacity — the maximum fault current the breaker can interrupt. Ics (15 kA) is the service breaking capacity, the fault current after which the breaker can continue in normal service. On the TPM7, Ics is 75 % of Icu.
Yes. In a DC1000V PV combiner box the TPM7 is typically fitted on the output side, after the string fuses and surge protective device, to protect and switch the combined array current.
Yes. Both screw-fixed and plug-in versions are available. Plug-in mounting shortens replacement time in cabinets where downtime matters.
Choose the TPM7n series when the system is DC 1500 V, when rated current exceeds 250 A, or when you need Ics equal to Icu (20 kA / 20 kA). Below DC 1000 V and up to 250 A, the TPM7 is the more compact and cost-effective option.
